  We, NEWSTAR PLASTIC INDUSTRY CO.,LTD., is a professional supplier of flexible ventilation ducting for mine and tunnels in China. Being engaged in the field of mine ventilation for more than 30 years, we have rich experience in making all kinds of fle...




DETAIL



Lay flat ventilation duct ( air forcing ventilation duct / positive pressure ventilation duct / straight length )

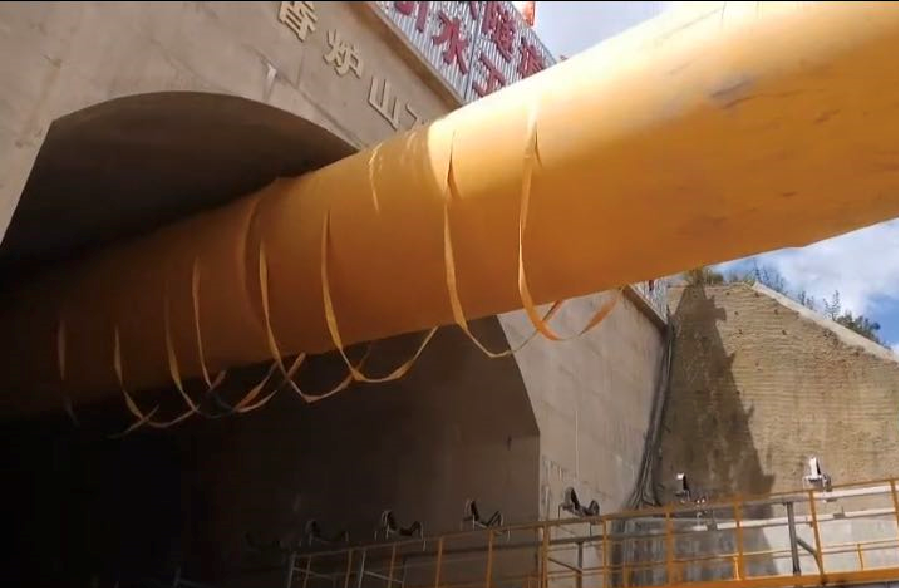

Lay flat Ventilation ducting material are usually used in positive pressure application for conveying fresh air to underground worksite. Lay flat ducting are widely used for ventilation in UG mining and tunnel operation. They are flexible, light in weight, easy to transport and require less manpower for installation.



We adopt hot air welding technology to make lay flat duct and for welding place, its strength can be retained to maximum extent. The coupling type can be steel ring, zipper or Velcro. The diameter can be from 10 inches to 100 inches. Our standard section length is 15ft, 30ft, 50ft, 100ft. We can also customize to make special specifications as our customers request.



For our flexible ventilation ducting, flame retardant and anti-static ducting are optional. We can customize to make the ducting material for you at first, then make the final ventilation ducting for you.



Features:

high tenacity ployester base fabric/ scrim with PVC coated on both sides.

long-time and stable anti-static. ( surface resistivity: less than 100 mega ohm. )

flame retardant ( can meet NFPA-701, B1, B2 or M2 standard ).

superior broken tensile strength and tear strength.

extremely low air leakage rate in a hundred meter.

extremely low drag coefficient in a hundred meter.

endure the temperature variation.

more fold-resistant.

easier in repairing.

pro-environmental, do not have any unpleasant odor.

Technical Characteristics   for 500GSM Ducting Material

NO

Item

Value

Unit

Test Method

1

Coating

PVC



2

Base Fabric

Polyester



3

Color

Yellow or Black



4

Finished Weight

500 +/-20

gr/sqm

DIN 53352

14.7

oz/y²

DIN 53352

5

Construction

9X9

Yarns/sq.inch

DIN 60001

3.5X3.5

Yarns/cm

DIN 53830

6

Yarn

1300DX1300D

Denier

DIN 60001

1430X1430 Dtex

Decitex

DIN 53830

7

Tensile Strength ( warp)

1800

N/5cm

DIN 53354

8

Tensile Strength ( weft)

1700

N/5cm

DIN 53354

9

Tear Strength ( warp)

350

 N

DIN 53363

10

Tear Strength ( weft)

350

 N

DIN 53363

11

Adhesion strength

120

N/5cm

DIN 53357

12

Temperature Resistance

-40 to +100

MIL-C-20696

13

Flame Retardant-FR treatment

Passed


M2, NFPA 701, DIN 4102-B1 OR   B2 level

14

Surface   Resistivity-Anti-static ( optional )

<300 mega

ohm

DIN 54345 PART 1



Note: The above data is for reference, for different batch of production, the test value may have 10% tolerance.



Technical Characteristics   for 550GSM Ducting Material

NO

Item

Value

Unit

Test Method

1

Coating

PVC



2

Base Fabric

Polyester



3

Color

Yellow or Black



4

Finished Weight

550 +/-20

gr/sqm

DIN 53352

16.2

oz/y²

DIN 53352

5

Construction

9X9

Yarns/sq.inch

DIN 60001

3.5X3.5

Yarns/cm

DIN 53830

6

Yarn

1300DX2000D

Denier

DIN 60001

1430X2200 Dtex

Decitex

DIN 53830

7

Tensile Strength ( warp)

1800

N/5cm

DIN 53354

8

Tensile Strength ( weft)

2500

N/5cm

DIN 53354

9

Tear Strength ( warp)

400

 N

DIN 53363

10

Tear Strength ( weft)

600

 N

DIN 53363

11

Adhesion strength

120

N/5cm

DIN 53357

12

Temperature Resistance

 -40 to +100

MIL-C-20696

13

Flame Retardant-FR treatment

Passed


M2, NFPA 701, DIN 4102-B1 OR   B2 level

14

Surface   Resistivity-Anti-static            ( optional )

<300 mega

ohm

DIN 54345 PART 1



Note: The above data is for reference, for different batch of production, the test value may have 10% tolerance.
